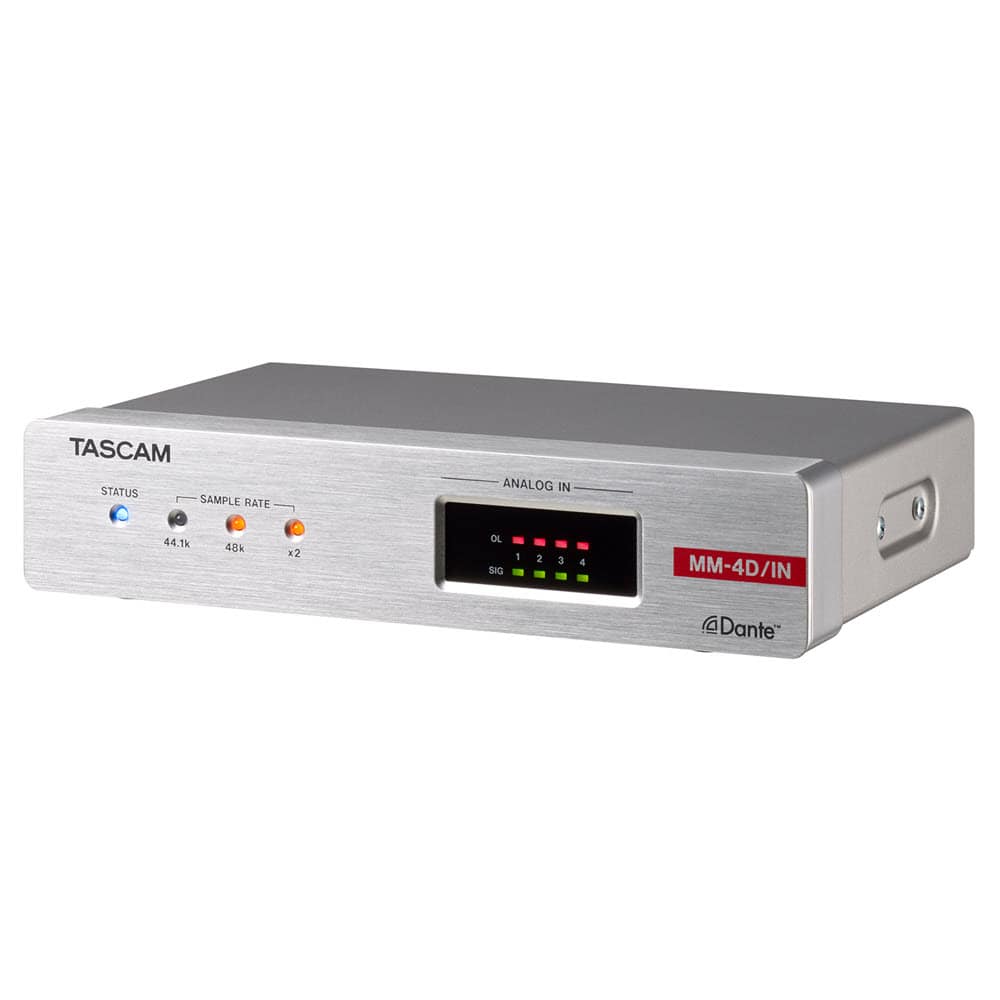

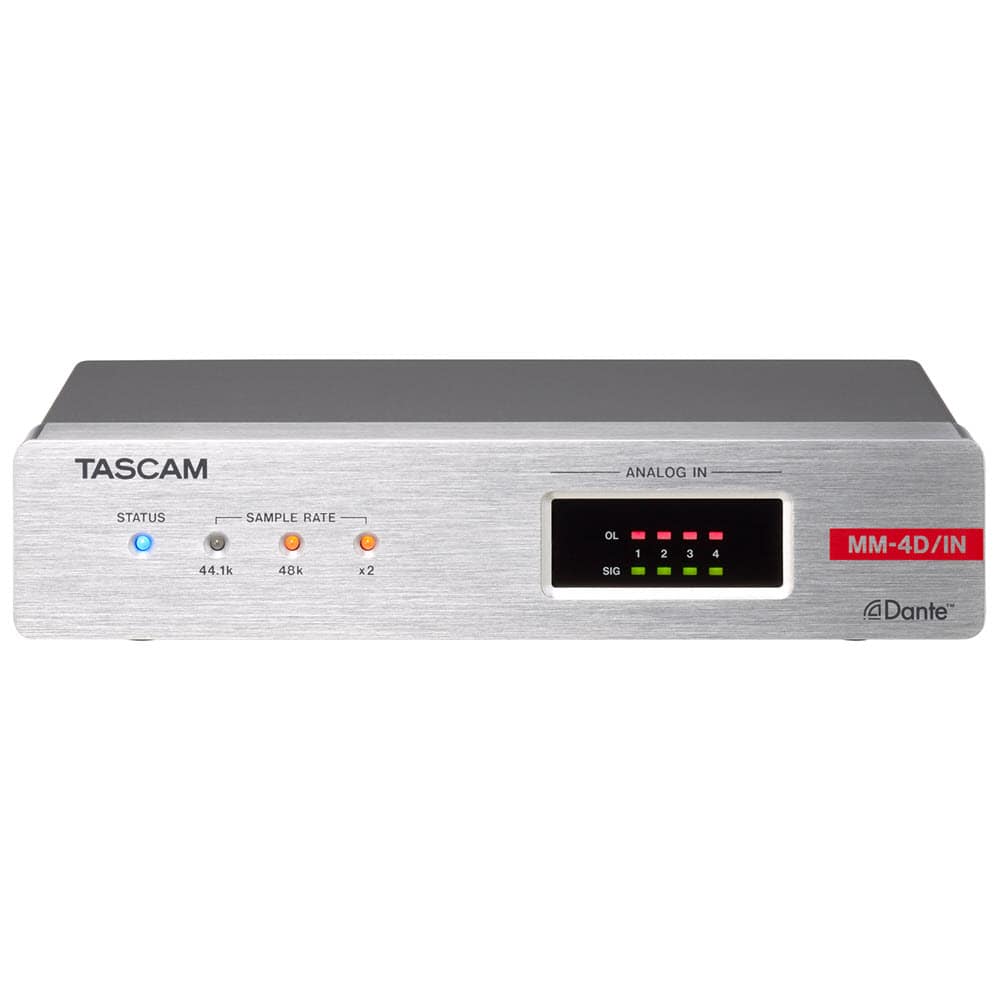

Tascam MM-4D/IN-X
Australia
4-Channel Mic / Line Input Dante Converter with built-in DSP Mixer
The Tascam MM-4D/IN-X is a 4 mic/line input Dante converter with built-in DSP. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. The Tascam MM-4D/IN-X supports up to 96kHz/24bit and uses XLR connectors for analog mic/line input.to respond to various needs of and professional audio scene.
- Four channel recording
- USB audio interface 2 in/2 out for Mac and PC recording
- Built-in stereo condenser microphones adjust between A/B or X/Y configurations. 125dB SPL sensitivity
- Two integrated combo-jack XLR/TRS inputs with phantom power
$1,298.00 [$1,298.00 ex GST]
Out of stock
Choose secure credit card payment via eway or use PayPal
Schools and Educational Institutions can choose
Payment on INVOICE
4 mic / line input, 4 Dante input / output
The Tascam MM-4D/IN-X converts 4-channel mic/line input signals into 4-channel Dante output signals. It also supports 4-channel Dante input/output making it possible to use audio sources within an established Dante network.
Built-in 8 in/4 out matrix mixer
Using the built-in matrix mixer, users can mix up to 8 different sources (4-channel mic/line inputs with 4-channel Dante inputs) and configure the settings on each of the four output zones. The matrix mixer is also equipped with a ducking function and an ambient noise compensator function, which detects the level of environmental sounds and automatically adjusts the input level of the source.
Main Features:

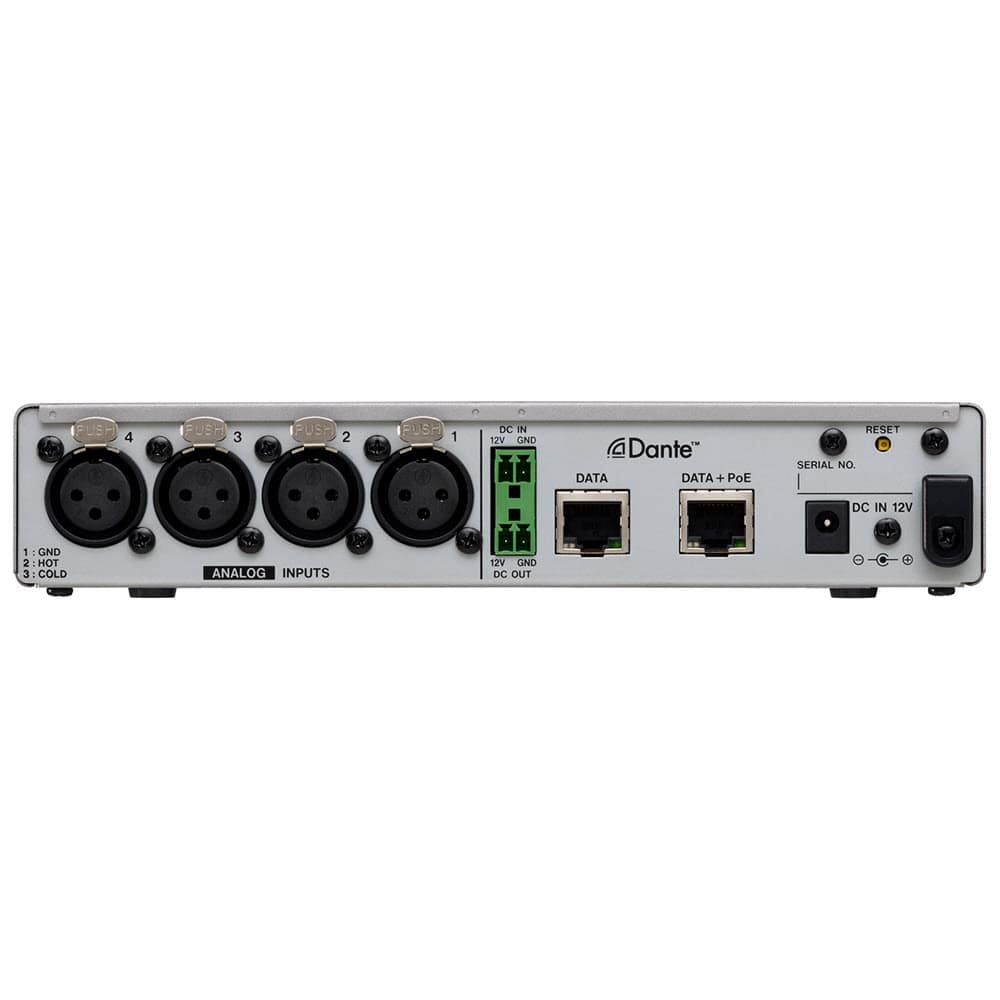

- 4-channel mic/line input with phantom power (+48v) support (XLR)
- Supports remote mic gain control
- 4 Dante input/output
- Supports PoE (Power over Ethernet)
- Up to 24bit/96kHz
- Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 8 in/4 out matrix mixer)
- Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
- Flexible scene preset function allows to work in different area situations (Up to 50 presets)
- 2 types of user control software available for Windows/Mac/iOS/Android devices:
- For full control: input/output routing selection, DSP/design/scene settings of the complete system, etc.
- For simple control: simple app design for only the necessary functions such as area volume settings, etc.
- Remote control via Dante
- Half-rack mountable size
- Equipped with indicators that show LAN/Dante connection status and sample rate
- Equipped with signal indicators that monitor line input signals
- Configurable reference level (via remote control only)
- Surface rack mountable angles for installation under desks included
